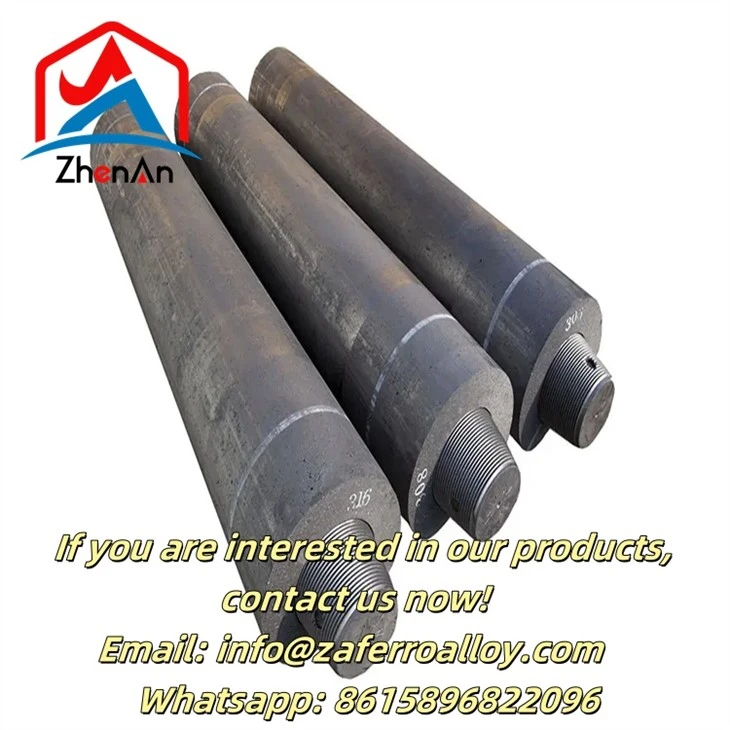

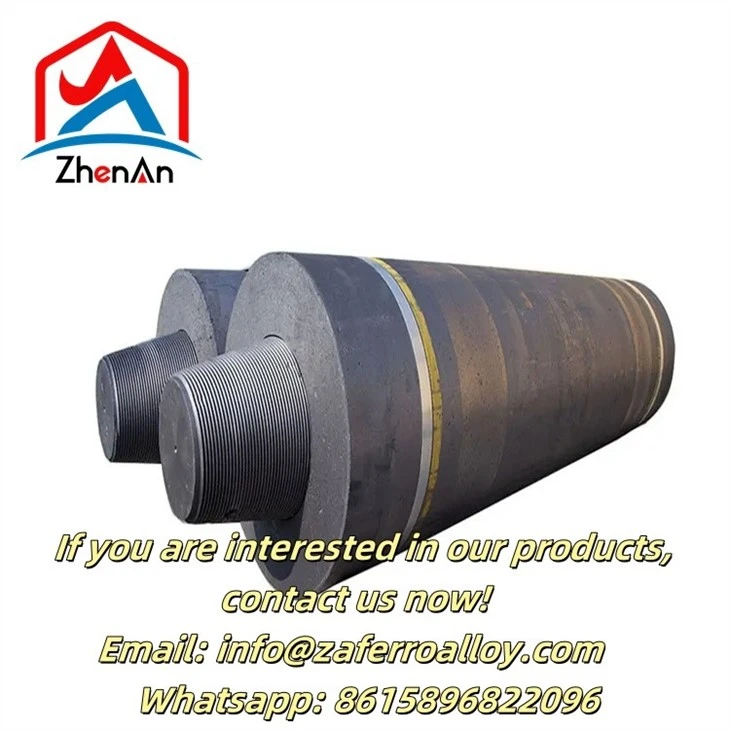

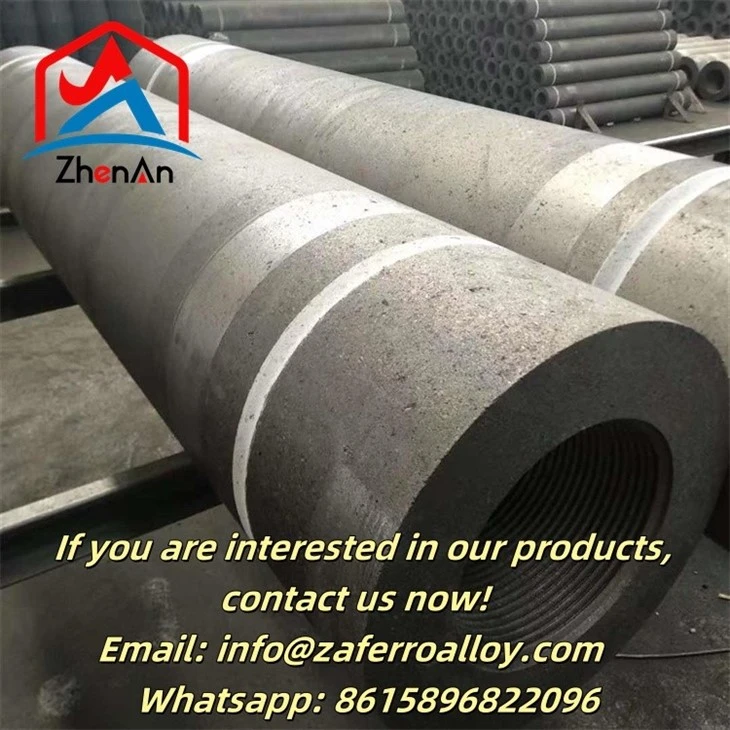

RP Graphite Electrode For Eaf
Specification: SGS
Production Capacity: 1500mt/Month
RP Graphite Electrode for Eaf Description
The function of graphite electrodes is to facilitate the transfer of electrical energy from the power supply to the steel melt in the electric arc furnace (EAF) bath. The electrodes are typically manufactured using premium petroleum needle coke, coal tar pitch, and a selection of additives.
Graphite electrodes represent the principal heating element employed in an electric arc furnace, a steelmaking process whereby scrap derived from discarded automobiles or domestic appliances is melted in order to produce new steel.
The construction costs of electric arc furnaces are less than those of traditional blast furnaces, which produce steel from iron ore and are fuelled by coking coal. However, the cost of steel production is higher due to the use of steel scrap and the reliance on electricity as a fuel source.
The Specification Of RP Graphite Electrode for Eaf
| Item | Unit | Graphite Electrode | ||||
| RP(mm) | ||||||
| φ100-φ600 | ||||||
| Resistivity | Electrode | μΩm | 7.0-10.0 | |||
| Nipple | 4.0-4.5 | |||||
| Modulus of Rupture | Electrode | Mpa | 8.0-10.0 | |||
| Nipple | 19.0-22.0 | |||||
| Young's Modulus | Electrode | Gpa | 7.0-9.3 | |||
| Nipple | 12.0-14.0 | |||||
| Bulk Density | Electrode | g/cm3 | 1.53-1.56 | |||
| Nipple | 1.70-1.74 | |||||
| CTE (100-600ºC) | Electrode | 10-6/ºC | 2.2-2.6 | |||
| Nipple | 2.0-2.5 | |||||
| Ash | % | 0.5 | ||||
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
