UHP Graphite Electrodes

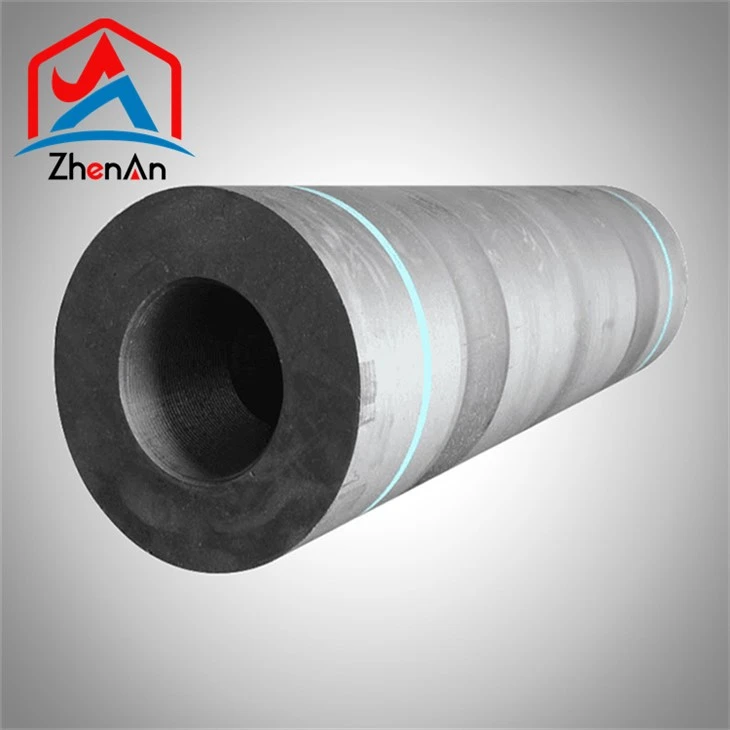

The ultra-high power (UHP) graphite electrodes produced by ZhenAn are made from high-quality petroleum coke, needle coke, coal pitch, and other raw materials. The production process involves calcining, dosing, mixing and kneading, molding, multiple rounds of roasting and impregnation, graphitizing into semi-finished products, and precise processing by professional numerical control lathes. These electrodes have the advantages of low electrical resistivity, low ash content, uniform structure, good resistance to thermal shock, high mechanical strength, low coefficient of thermal expansion, and precise coordination between electrodes and joints. They are excellent materials for electric furnace steelmaking and mineral heat furnace smelting.









Items		Ultrahigh power(UHP)
		⌽250-400	⌽450-600	⌽700
ResistanceμΩm(Max)	Electrode	5.5		5.5
	Nipple	3.8		3.6
BulkDensityg/cm3(Min)	Electrode	1.67	1.66	1.66
	Nipple	1.75		1.78
BendingStrengthMpa(Min)	Electrode	11		11
	Nipple	20		20
Young'smodulusGpa(Max)	Electrode	14		14
	Nipple	18		22
Ash%(Max)	Electrode	0.3		0.3
	Nipple	0.3		0.3
CTE(100-600℃)×10-6/℃	Electrode	1.5		1.4
	Nipple	1.4		1.2



Standard Sizes of Electrode: If special specification requirements exist, both sides consult supply & demand.



Standard sizes of electrode
Specifications(inch)	Allowable Diameter(mm)			Allowable Length(mm)
	Nominal Diameter	Max.	Min.	Nominal Length	Max.	Min.
6	150	154	151	1600	1700	1500
				1800	1875	1700
8	200	205	200	1600	1700	1500
				1800	1875	1700
9	225	230	225	1600	1700	1500
				1800	1875	1700
10	250	256	251	1600	1700	1500
				1800	1875	1700
12	300	307	302	1800	1875	1700
14	350	357	352	1600	1700	1500
				1800	1875	1700
16	400	409	403	1600	1500	1500
				1800	1875	1700
				2100	2175	1975
18	450	460	454	1800	1875	1700
				2100	2175	1975
				2400	2475	2275
20	500	511	505	1800	1875	1700
				2100	2175	1975
				2400	2475	2275
22	550	562	556	2100	2175	1975
				2400	2475	2275
24	600	613	607	2100	2175	1975
				2400	2475	2275
				2800	2850	2550
28	700	714	708	2400	2475	2275
				2800	2850	2550



Current Carrying Capacity for Graphite Electrode:

Nominal Diameter(mm)	Ultra High Power
	Current Load(A)	Current Density(A/cm2)
200	----	----
225	----	----
250	----	----
300	15000～22000	20-30
350	20000～30000	20-30
400	25000～40000	19-30
450	32000～45000	19-27
500	38000～55000	18-27
550	42000～66000	17-26
600	49000～88000	17-26
700	70000-110000	17-24



If there are special specification requirements, both sides consult supply and demand.





Inspection and Preparation:

Before packaging, each UHP graphite electrode undergoes a thorough inspection to ensure it meets quality standards.

UHP graphite electrodes are then cleaned to remove any dust or debris.



Wrapping and Securing:

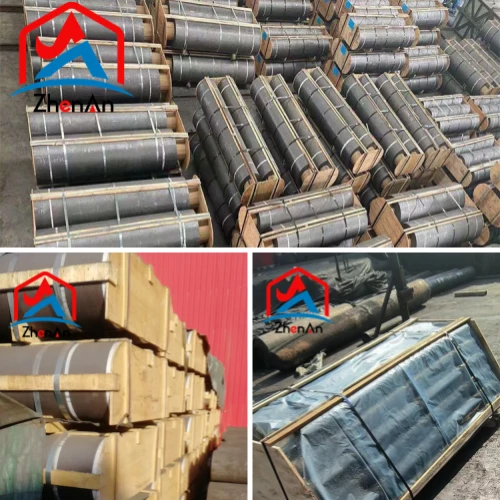

Each UHP graphite electrode is individually wrapped in a protective cover. If shrink wrap is used, it is applied tightly to ensure a secure fit.

The wrapped electrodes are placed on wooden pallets, and steel bands are used to secure them to the pallets.



Adding End Caps:

Protective end caps are fitted onto the threaded ends of the UHP graphite electrodes. These caps are usually color-coded or labeled to indicate the electrode size and type.



Framing and Labeling:

For enhanced protection, the palletized electrodes may be placed within packing frames.

Each package is labeled with important information, such as the product specifications, batch number, manufacturer details, and handling instructions.



Final Inspection and Documentation:

A final inspection is conducted to ensure all packaging components are securely in place.

Necessary shipping and handling documentation, including safety data sheets (SDS), is prepared and attached to the package.
