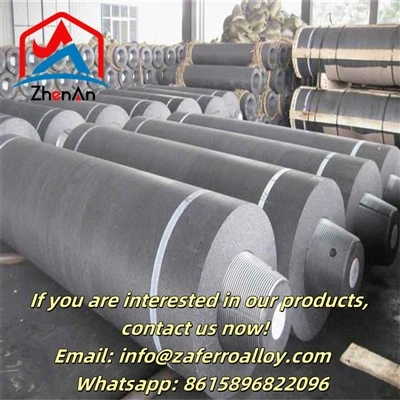

UHP Graphite Electrode 600mm
Forming Way: Extruded Graphite
Crystal Morphology: Aphanitic Graphite
Transport Package: Wooden Case with Pallet
Specification: 75-750mm
Production Capacity: 20000mt
UHP Graphite Electrode 600mm Description
The electrodes are integrated into the furnace lid and are assembled into columns. Subsequently, an electric arc is formed between the electrodes, generating a high temperature that melts the scrap steel. The dimensions of the electrodes vary considerably, with diameters reaching up to 0.75 metres (2.5 feet) and lengths of up to 2.8 metres (9 feet). The largest of these weigh in excess of two metric tons.
The production of one tonne of steel requires the use of graphite electrodes with a mass of up to 3 kg (6.6 lb).
The tip of the electrode will reach a temperature of 3,000 degrees Celsius, which is approximately half that of the sun's surface. The electrodes are manufactured from graphite due to its ability to withstand the intense heat generated.
Subsequently, the furnace is rotated to a horizontal position, enabling the transfer of the molten steel into receptacles designated as ladles. Subsequently, the ladles convey the molten steel to the steel mill's caster, which utilises the recycled scrap to manufacture new products.
The Specification Of UHP Graphite Electrode 600mm
| UHP Graphite Electrode | |||||||
| Item | Unit | Diameter | |||||
| Φ300 | Φ300-Φ350 | Φ400-Φ500 | Φ550 | Φ600 | Φ650-Φ700 | ||
| Electric resistivity≤ | μΩm | 5.50 | 5.50 | 5.50 | 5.50 | 5.50 | 5.50 |
| Flexure strength≥ | Mpa | 12.00 | 12.00 | 12.00 | 12.00 | 12.00 | 12.00 |
| Modulus of elasticity≤ | Gpa | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
| Bulk Density≥ | g/cm3 | 1.69 | 1.69 | 1.69 | 1.69 | 1.69 | 1.69 |
| CTE(100-600ºC) ≤ | x10-6/ºC | 1.40 | 1.40 | 1.40 | 1.40 | 1.40 | 1.40 |
| Ash Content ≤ | % | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
