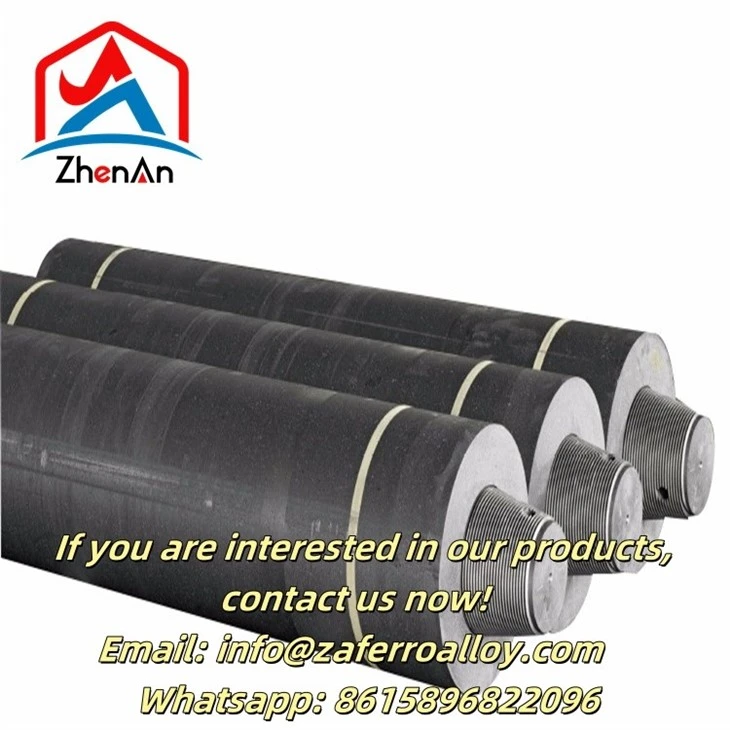

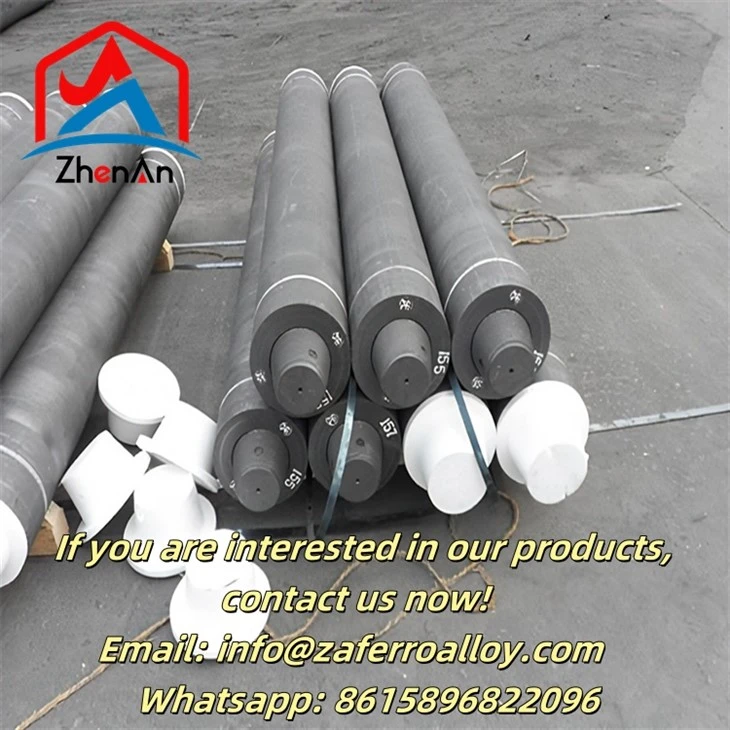

High Carbon HP Graphite Electrode
Actual Length: 1600-2800 mm
Transport Package: Wood Package
Specification: SGS
Production Capacity: 1500mt/Month
Bulk Density: 1.68-1.74 g/cm3
Ash: 0.3%
Modulus of Rupture: 10-14 MPa
High Carbon HP Graphite Electrode Description
The Ultra High Power (UHP) Graphite Electrodes produced by Jianglong Carbon Group utilise 100% high-quality imported needle coke, advanced production equipment and technology, and are manufactured in strict accordance with the world-class standard. The Ultra-high Power (UHP) Graphite Electrode exhibits lower resistivity, enhanced electrical conductivity and superior mechanical strength. The graphite electrode nipples are manufactured using 100% imported needle coke, which undergoes a three-time impregnation and a four-time baking process. The product quality has reached a standard that is comparable to, or even exceeds, that of products manufactured to world-class standards, and is therefore suitable for use in ultra-high power electric arc furnaces and ladle refining furnaces used in steel production.
The Specification Of High Carbon HP Graphite Electrode
| ITEM | High power | |||
| UNIT | 4-24inch | 14-24inch | ||
| φ100-300mm | φ350-600mm | |||
| Resistivity | Electrode | μΩ·m | 5.8-6.8 | 5.5-6.5 |
| Nipple | 4.0-5.0 | 3.5-4.0 | ||
| Bending stregth | Electrode | Mpa | 9.0-12.0 | 10.0-14 |
| Nipple | 16.0-20 | 20.0-23.0 | ||
| Elastic Modulus | Electrode | Gpa | 8.0-12.0 | 8.0-12.0 |
| Nipple | 12.0-15.0 | 14.0-16.0 | ||
| Bulk density | Electrode | g/cm3 | 1.68-1.70 | 1.68-1.72 |
| Nipple | 1.78-1.82 | 1.78-1.82 | ||
| Ash | Electrode | % | 0.3 | 0.3 |
| Nipple | ||||
| Electrode | 10-6/ºC | 1.6-2.0 | 1.6-1.9 | |
| CTE | Nipple | 100-600ºC | 1.1-1.5 | 1.1-1.4 |
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
