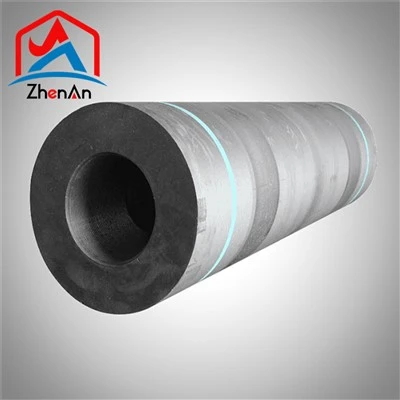

225X1500mm HP Graphite Electrode
Forming Way: Extruded Graphite
Crystal Morphology: Aphanitic Graphite
Transport Package: Wooden Case with Pallet
Specification: 75-750mm
Production Capacity: 20000mt
225X1500mm HP Graphite Electrode Description
The super high power graphite electrode is derived primarily from domestic petroleum coke and imported needle coke. It is a highly versatile material, employed in a range of industrial contexts, including electric arc furnaces, ladle furnaces and submerged arc furnaces. These applications enable the production of a diverse array of materials, including alloy steel, metals and non-metallic substances.
The range of graphite electrodes encompasses standard, high, special high and ultra high power options. These electrodes possess a number of distinctive characteristics, including low electrical resistivity, favourable electrical and thermal conductivity, high oxidation and thermal shock resistance, and high mechanical strength. The factory offers a variety of sizes and grades to meet customer specifications for specific applications.
In order to meet the requirements of higher work efficiency and lower total cost, large-capacity ultra-high-power electric arc furnaces are becoming increasingly popular. Consequently, the market will be dominated by Super High Power Graphite Electrodes with a diameter of more than 500 mm.
The Specification Of 225X1500mm HP Graphite Electrode
| ITEM | High Power | ||
| 4-24inch | 14-24inch | ||
| φ100-300mm | φ350-600mm | ||
| Resistivity | Electrode | 5.8-6.8 | 5.5-6.5 |
| Nipple | 4.0-5.0 | 3.5-4.0 | |
| Bending strength | Electrode | 9.0-12.0 | 10.0-14.0 |
| Nipple | 16.0-20.0 | 20.0-23.0 | |
| Elastic Modulus | Electrode | 8.0-12.0 | 8.0-12.0 |
| Nipple | 12.0-15.0 | 14.0-16.0 | |
| Bulk density | Electrode | 1.68-1.7 | 1.68-1.72 |
| Nipple | 1.78-1.82 | 1.78-1.82 | |
| Ash | Electrode | 0.3 | 0.3 |
| Nipple | |||
| CTE (100-600ºC) |
Electrode | 1.6-2.0 | 1.6-1.9 |
| Nipple | 1.1-1.5 | 1.1-1.4 | |
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
