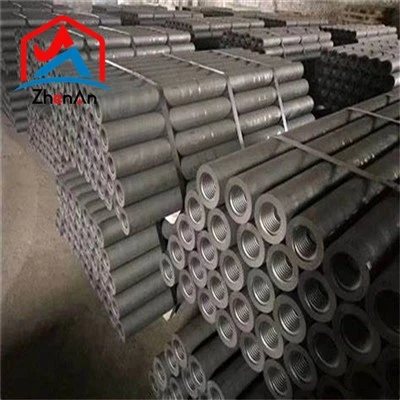

UHP700 Graphite Electrode
Delivery Time: 7 Days (Within 100tons)
Transport Package: Wooden Pallets with Steel Strips
Production Capacity: 80000ton/Year
Electrode:Bulk Density≥ 1.56g/cm3 Specific Resistivity≤ 8.5μm
UHP700 Graphite Electrode Description
The Ultra High Power (UHP) Graphite Electrodes produced by Jianglong Carbon Group utilise 100% high-quality imported needle coke, advanced production equipment and technology, and are manufactured in strict accordance with the world-class standard. The Ultra-high Power (UHP) Graphite Electrode exhibits lower resistivity, enhanced electrical conductivity and superior mechanical strength. The graphite electrode nipples are manufactured using 100% imported needle coke, which undergoes a three-time impregnation and a four-time baking process. The product quality has reached a standard that is comparable to, or even exceeds, that of products manufactured to world-class standards, and is therefore suitable for use in ultra-high power electric arc furnaces and ladle refining furnaces used in steel production.
The Specification Of UHP700 Graphite Electrode
| Diameter (mm) | Length (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Nominal Diameter | Actual Diameter | Nominal Length | Tolerance | Short Length | |||
| (inch) | (mm) | (max.) | (min.) | (rough spot) | |||
| 10 | 250 | 256 | 251 | 248 | 1600/1800 | ±100 | -275 |
| 12 | 300 | 307 | 302 | 299 | 1600/1800 | ||
| 14 | 350 | 357 | 352 | 349 | 1600/1800 | ||
| 16 | 400 | 409 | 403 | 400 | 1600/1800/2000/2200 | ||
| 18 | 450 | 460 | 454 | 451 | 1600/1800/2000/2200 | ||
| 20 | 500 | 511 | 505 | 502 | 1800/2000/2200/2400 | ||
| 22 | 550 | 562 | 556 | 553 | 1800/2000/2200/2400 | ||
| 24 | 600 | 613 | 607 | 604 | 2000/2200/2400 | ||
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
