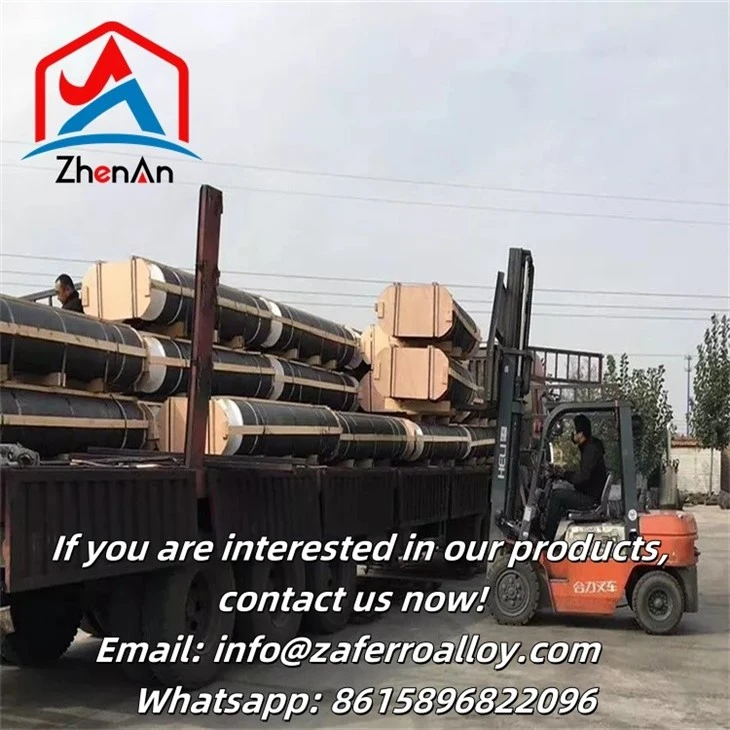

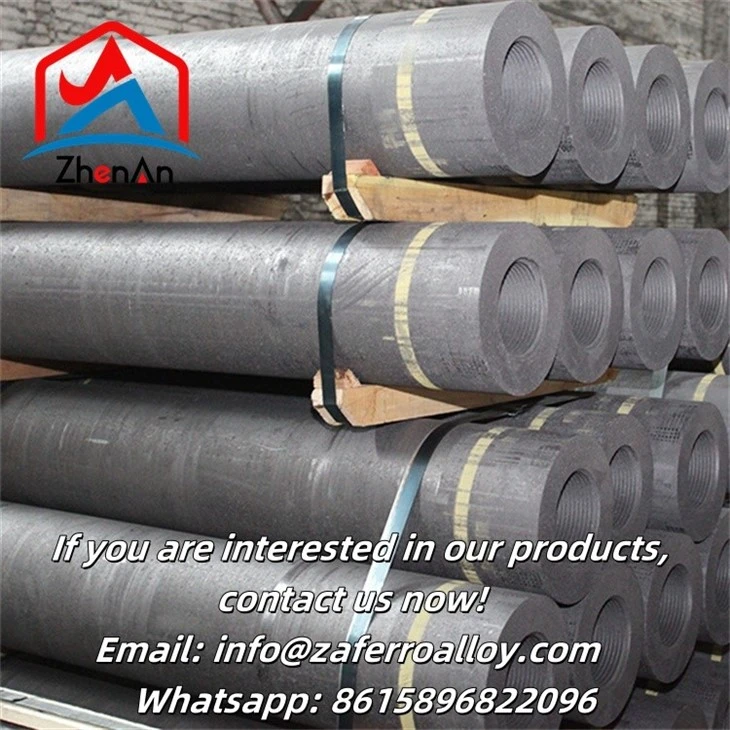

HP450 Graphite Electrode
Current carrying capacity A: 25000-40000
Current density A/cm²: 15-24
Diameter Nominal Diamete: 450mm
Max 460mm: Min 454mm
Length Nominal Len: 2000mm
Standard length tolerance: +/- 100mm
Short Dimension length tolerance: -100/-275mm
HP450 Graphite Electrode Description
Graphite electrodes are a common component of electric arc furnaces used in the steelmaking process. The principal function of the electrode is to introduce current into the electric arc furnace (EAF) after energisation, and to utilise the high-temperature heat source generated by the arc between the electrode end and the charge in order to perform metallurgical processes. The graphite electrode is an effective conductor for the heating and melting of the furnace charge.
The Specification Of HP450 Graphite Electrode
| ITEM | UNIT | |
| Cross-sectional area | cm2 | 1622 |
| Current carrying capacity | A | 25000-40000 |
| Current density | A/cm2 | 15-24 |
| Diameter | Nominal Diameter | 450mm |
| Max | 460mm | |
| Min | 454mm | |
| Length | Nominal Length | 2000mm |
| Standard length tolerance | +/- 100mm | |
| Short Dimension length tolerance | -100/-275mm |
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
