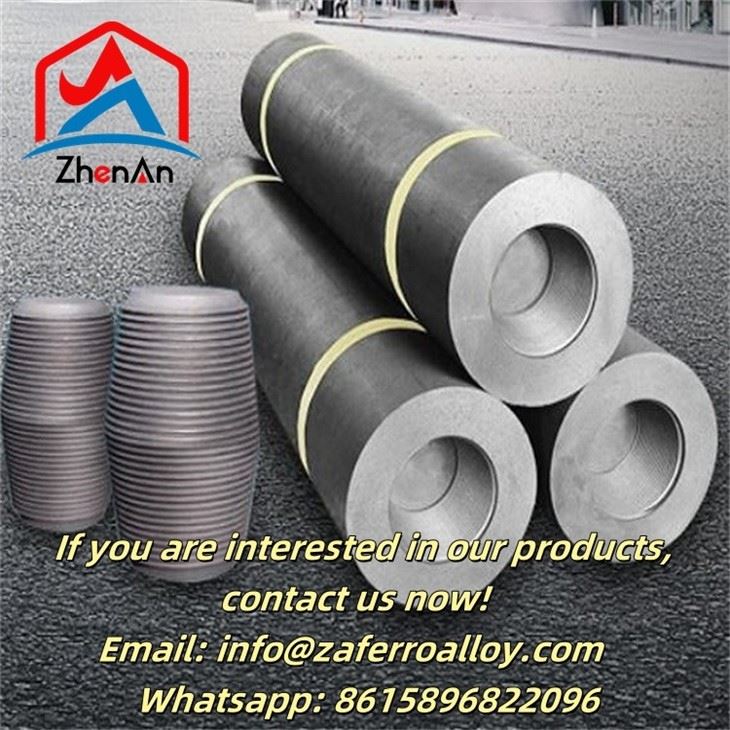

UHP 300mm Graphite Electrode
Forming Way: Molded Graphite
Crystal Morphology: Compact Crystalline Graphite
Transport Package: Wooden Pallets with Steel Strips
Specification: 1500-2700mm or customized
UHP 300mm Graphite Electrode Description
An ultra-high power graphite electrode (UHP) is a specialized type of electrode utilized in high-power applications. The production of the UHP graphite electrode necessitates the utilisation of high-level needle coke, with the subsequent graphitisation heat treatment conducted within the inner series graphitisation furnace. The graphitisation temperature is as high as 2800-3000°C, which results in a low resistivity and a small linear expansion coefficient. It exhibits excellent thermal shock resistance.
The distinction between regular power graphite electrodes and high-power and ultra-high-power graphite electrodes hinges on the quality of the needle coke used. All 600mm diameter UHP graphite electrodes produced by ZHENAN utilise 100% needle coke, thereby ensuring optimal quality and performance in steelmaking factories.
The Specification Of UHP 300mm Graphite Electrode
| ITEM | Ultra high power | ||
| 12-20inch | 22-28inch | ||
| φ300-500mm | φ550-700mm | ||
| Resistivity | Electrode | 4.8-5.8 | 4.5-5.5 |
| Nipple | 3.0-4.0 | 2.5-3.5 | |
| Bending strength | Electrode | 10.0-15.0 | 12.0-16.0 |
| Nipple | 20.0-24.0 | 22.0-25.0 | |
| Elastic Modulus | Electrode | 9.0-13.0 | 10.0-14.0 |
| Nipple | 15.0-18.0 | 16.0-19.0 | |
| Bulk density | Electrode | 1.70-1.75 | 1.70-1.75 |
| Nipple | 1.78-1.85 | 1.8-1.85 | |
| Ash | Electrode | 0.2 | 0.2 |
| Nipple | |||
| CTE (100-600ºC) |
Electrode | 1.1-1.4 | 1.1-1.4 |
| Nipple | 0.9-1.2 | 0.9-1.2 | |
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
