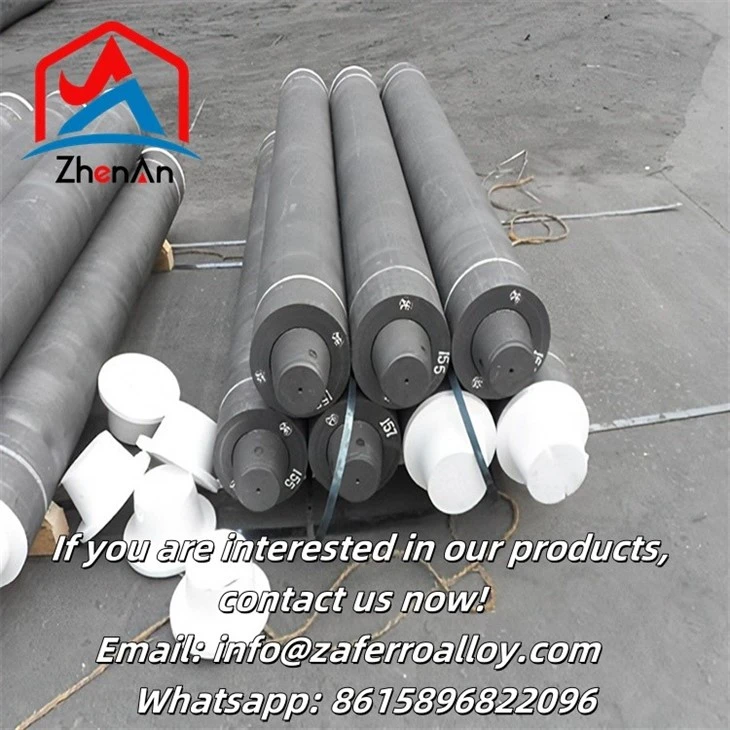

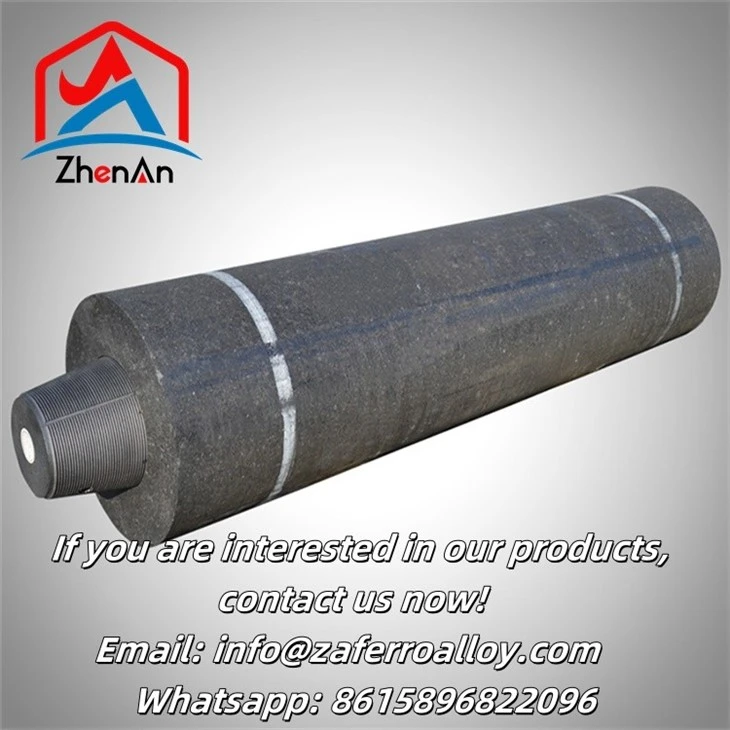

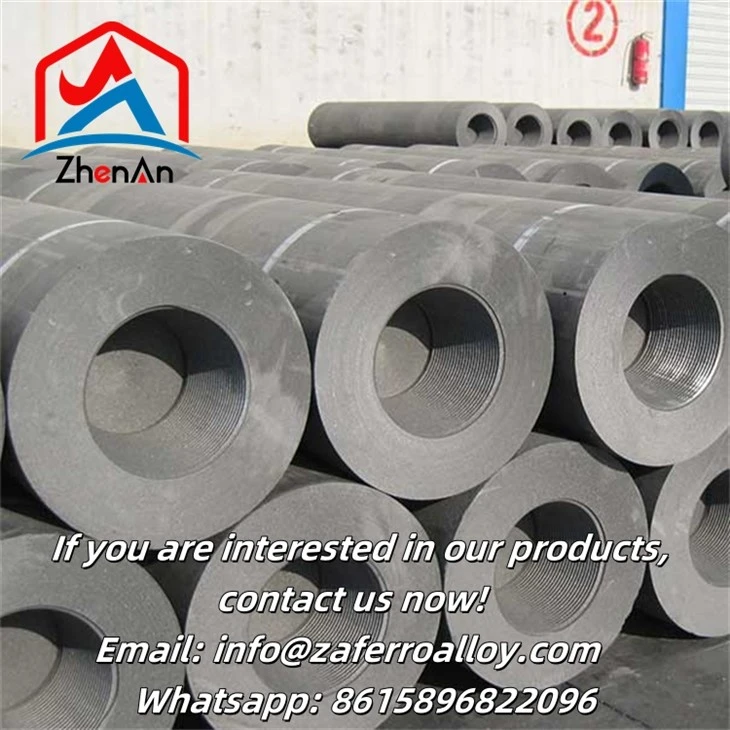

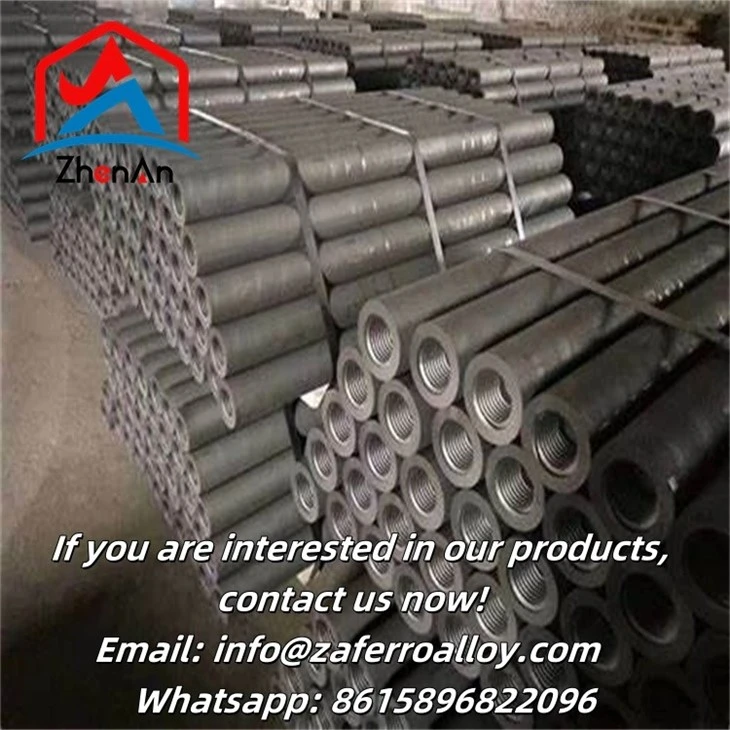

HP 350 High Quality Graphite Electrode
Specification: diameter 100mm-500mm
Production Capacity: 3000 Tons Each Month
Cross-sectional area cm²: 1622
Current carrying capacity A: 25000-40000
Current density A/cm²: 15-24
Diameter Nominal Diamete: 450mm
HP 350 Graphite Electrode Description
Graphite electrodes are employed in electric furnace steelmaking and ore-thermal electric furnaces for the smelting of alloy steel, brown corundum and other alloys and non-metals. During the electric arc furnace (EAF) steelmaking process, an electric current is introduced through the graphite electrode, which generates an arc in the smelting area. The smelting process commences when the temperature reaches approximately 2000 degrees Celsius.
The HP 350 graphite electrode is characterised by a compact structure, low resistivity and strong resistance to oxidation and corrosion. Furthermore, it exhibits excellent electrical and thermal conductivity, as well as the capacity to withstand substantial current loads.
It can be utilised in industrial electric arc furnaces, steel mills and foundries for casting and smelting processes.
The Specification Of HP 350 Graphite Electrode
| HP350x1800 | |||
| Type and size | |||
| Dia tolerance | Length tolerance | ||
| Electrode spec | HP350x1800 | 350 (352-258) | 1800 (+/-0) |
| Nipple spec | Type HC | ||
| 203T4L, 203T4N | |||
| Technical specification | |||
| Electrode | Nipple | ||
| RESISTIVITY | μΩΜ, max | 7.5 | 5.5 |
| BENDING STRENGTH | Mpa, min | 9 | 15 |
| BULK DENSITY | g/cm3, min | 1.65 | 1.7 |
| CTE | 10-6/℃, max | - | 1,5 (20-520 C) 0,7 (20-100 C) |
FAQ
Q: What is your delivery time?
A: It depends on the size/complexity of your order and our production schedule. Usually, we provide a faster delivery than the industry's average.
Q: What is the payment term?
A: Our payment terms are negotiable.
Q: I have some special requirements about specifications.
A: We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q: Do you accept OEM services?
A: Yes, we do.
